Brightest SMD LED Chip 2835 9v 0.5w 80-85lm For Pets Light
High brightness 2835 9v 0.5w smd led chip 80-85lm for pets light
Since a cat's cones are most sensitive to blue and yellow wavelengths of light, they do not see colors like red, orange, or brown. They are similar to people with red-green color blindness—red hues likely appear as the color green to your cat.
Quick details:
| Input Voltage(V): | 9V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 160lm/w |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | 2700k 3000k 6500k |
| Power: | 0.5w |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | LED STRIP |
| Package Type: | Suface Mount Package |
| Forward Current: | 60MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:

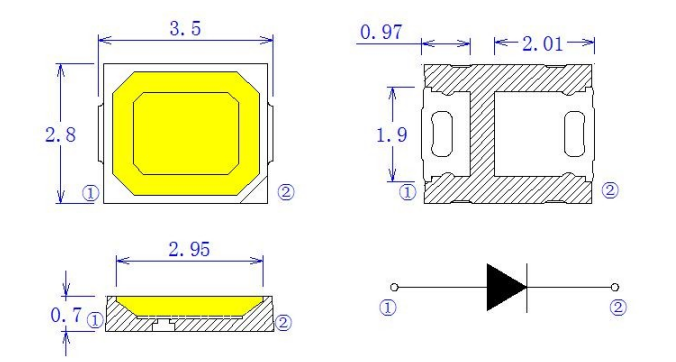

Package Structure
Absolute Maximum Ratings
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | IF | 60 | mA |
| Reverse Voltage | Vr | 15 | V |
| Pulsed Forward Current | IFP* | 90 | mA |
| Power dissipation | PD | 1 | W |
| Operating Temperature | TOP | -40~115 | ℃ |
| Storage Temperature | TST | -40~85 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
| Junction Temperature | Tj | 125 | ℃ |
| LED Thermal resistance | Rth s-j | 20 | ℃/W |
| |

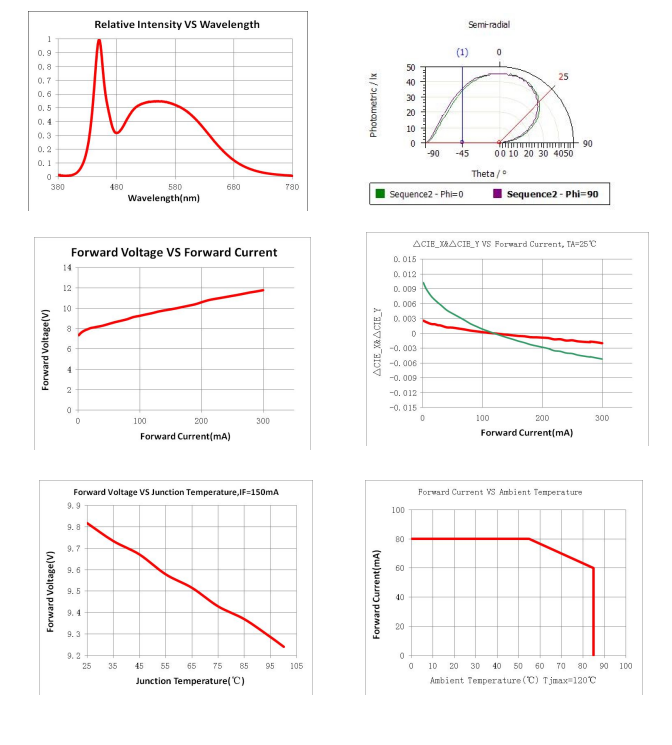

Typical Electro-Optical characteristics curves:
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
